Smart Mobility
Sit and enjoy without worry, define new ways of travelling
By more intelligent means of travel and more optimized user experience as the guide, MIND identifies technological sore points and provides full-scenery systematic solutions by means of scenery change and differentiated experience.
Intelligent driving
User experience
Electronic gear shifter
Electric open and close parts
-
Intelligent Driving
-
User Experience
-
Electronic Gear Shifter
-
Electric Open and Close Parts
Intelligent Driving
To cope with diversified social change, MIND identifies technological sore points and provides full-scenery systematic solutions by means of scenery change and differentiated experience, and meanwhile, extends multiple product categories by combining with demand of market segments.
-
4d Millimeter Wave Radar -
Camera
Customization requirements
- 4d Millimeter Wave Radar
- Camera
- 8m Rear-view Camera
- 1m All-round Looking Camera
- 2m Side-view Camera
- 3m All-round Looking Camera
- Trinocular 8m Camera
-
4d Millimeter Wave Radar4D point cloud imaging millimeter wave radar empowers intelligent driving, and realizes upgrading and replacement of traditional millimeter wave radar in L2 field; L3AVP and other intelligent driving functions.
- 4D high resolution point cloud imaging
- Precision target height finding
- Precision target contour probing
- Rival lidar
-
CameraHigh definition all-round looking collects video data via the four cameras at the front, rear, left and right directions mounted on the vehicle, and transmits to HUT (on-board entertainment basic terminal) display screen to display through processing by AVM controller; AVM has 2D and 3D modes and multiple auxiliary driving viewing angles, which are able to intelligently switch according to user settings or scenario of application.
- RAW data transmission, low delay
- High dynamic range, LED flashing suppression
-
8m Rear-view CameraADAS rear-view camera mounted at the rear of the vehicle collects the video data of the rear of the vehicle. Rear-view camera is a hardware that converts the format of external scenery information into the one intelligent driving controller is able to process at certain frame rate (frame rate requirements should be provided by intelligent driving controller), probing distance is long, and it is able to realize automatic auxiliary driving function of L2+ and above.
- High resolution, low power consumption
- RAW data transmission, low delay
- High dynamic range, LED flashing suppression
-
1m All-round Looking CameraHigh definition all-round looking collects video data via the four cameras at the front, rear, left and right directions mounted on the vehicle, and transmits to HUT (on-board entertainment basic terminal) display screen to display through processing by AVM controller; AVM has 2D and 3D modes and multiple auxiliary driving viewing angles, which are able to intelligently switch according to user settings or scenario of application.
- Large aperture lens, nighttime effect is optimum
- Panorama imaging function requirement
- High-definition all-round looking, image quality is clear and delicate
-
2m Side-view CameraADAS side-view, the 4 cameras mounted at front left, rear left, front right and rear right locations of the vehicle collect the video data surrounding the vehicle. Side-view camera is a hardware that converts the format of external scenery information into the one intelligent driving controller is able to process at certain frame rate (frame rate requirements should be provided by intelligent driving controller), and it is able to realize automatic auxiliary driving function of L2+ and above.
- High resolution, low power consumption
- RAW data transmission, low delay
-
3m All-round Looking CameraHigh definition all-round looking collects video data via the four cameras at the front, rear, left and right directions mounted on the vehicle, and transmits to HUT (on-board entertainment basic terminal) display screen to display through processing by AVM controller; AVM has 2D and 3D modes and multiple auxiliary driving viewing angles, which are able to intelligently switch according to user settings or scenario of application.
- Large aperture lens, nighttime effect is optimum
- Panorama imaging function requirement
- High-definition all-round looking, image quality is clear and delicate
-
Trinocular 8m CameraADAS trinocular front-view camera mounted on upper location of windscreen of the vehicle collects the video data of the front of the vehicle. Front-view camera is a hardware that converts the format of external scenery information into the one intelligent driving controller is able to process at certain frame rate (frame rate requirements should be provided by intelligent driving controller); trinocular camera realizes close range, medium range and remote simultaneous probing, and it is able to realize automatic auxiliary driving function of L2+ and above.
- High resolution, low power consumption
- RAW data transmission, low delay
- High dynamic range, LED flashing suppression
User Experience
To cope with diversified social change, MIND identifies technological sore points and provides full-scenery systematic solutions by means of scenery change and differentiated experience, and meanwhile, extends multiple product categories by combining with demand of market segments.
-
Sterilization Module -
Vehicle-mounted Refrigerator
Customization requirements
- Sterilization Module
- Vehicle-mounted Refrigerator
-
Sterilization Module
- High-efficiency sterilization: air sterilization rate in cabin can achieve 99.9%
- Safe use: Hidden layout, real-time sterilization
- Integrated design: HVAC integrated layout，saving space
-
Vehicle-mounted Refrigerator
The refrigerator is on the CNSL. Compressor refrigeration. Item placement：top armrest or bottom drawer
A large space of 16L, top：6 bottles water，drawer：8 cola
The three modes can be adjusted : refrigeration(0-15℃), heating(35-50℃)and preservation(10℃)
The atmosphere lamp is blue during refrigeration and orange during heating
The drawer is an electric pop-up structure with self-locking function
-
Sparse shadow slants in clear and shallow water, quiet aroma floats under the moonlight of nightfall. Exploit along with the freshness of lake water, and march forward with the hidden aroma of dusk
Electronic Gear Shifter
Electronic gear shifter transmits gear lever position information to TCU (transmission control unit) via CAN bus through electric signal to realize automatic transmission PRND.
-
Rotary Knob Type -
Gear Lever Type -
Column Shift Type
Customization requirements
- Rotary Knob Type
- Gear Lever Type
- Column Shift Type
-
Rotary Knob TypeIt adopts rotary knob structure, is able to 360°rotate, has 16 steady-state points, identifies customer gear shifting needs according to left and right rotating direction, integrates automatic/manual signal identification function, and operates signal interaction via CAN bus and transmission control unit (TCU).
- It uses double chip/dual core MCU technology to achieve ASIL-B, and accurately identifies gear shifting demand signal by two-way 2D Hall signal collection and software filtering algorithm, and is equipped with FOTA remote upgrading function.
- Rotary hand sensing feedback is clear and explicit, and volume is small; operating is simple; the appearance is progressive.
-
Gear Lever TypePush lever type, it uses 5-point mono-steady-state structure, the middle is the steady-state point, is able to push forward 2 gears (R), push backward 2 gears (D/M), integrates automatic/manual signal identification function, and operates signal interaction via CAN bus and transmission control unit (TCU).
- It uses double chip/dual core MCU technology to achieve ASIL-B, and accurately identifies gear shifting demand signal by two-way (switch/2D) Hall signal collection and software filtering algorithm, can be equipped with autosar network wake-up function, and is equipped with FOTA remote upgrading function.
- It perfectly combines the thick and solid hand feeling of old-fashioned mechanical gear lever and advanced technology and convenience functions of modern electric lever.
-

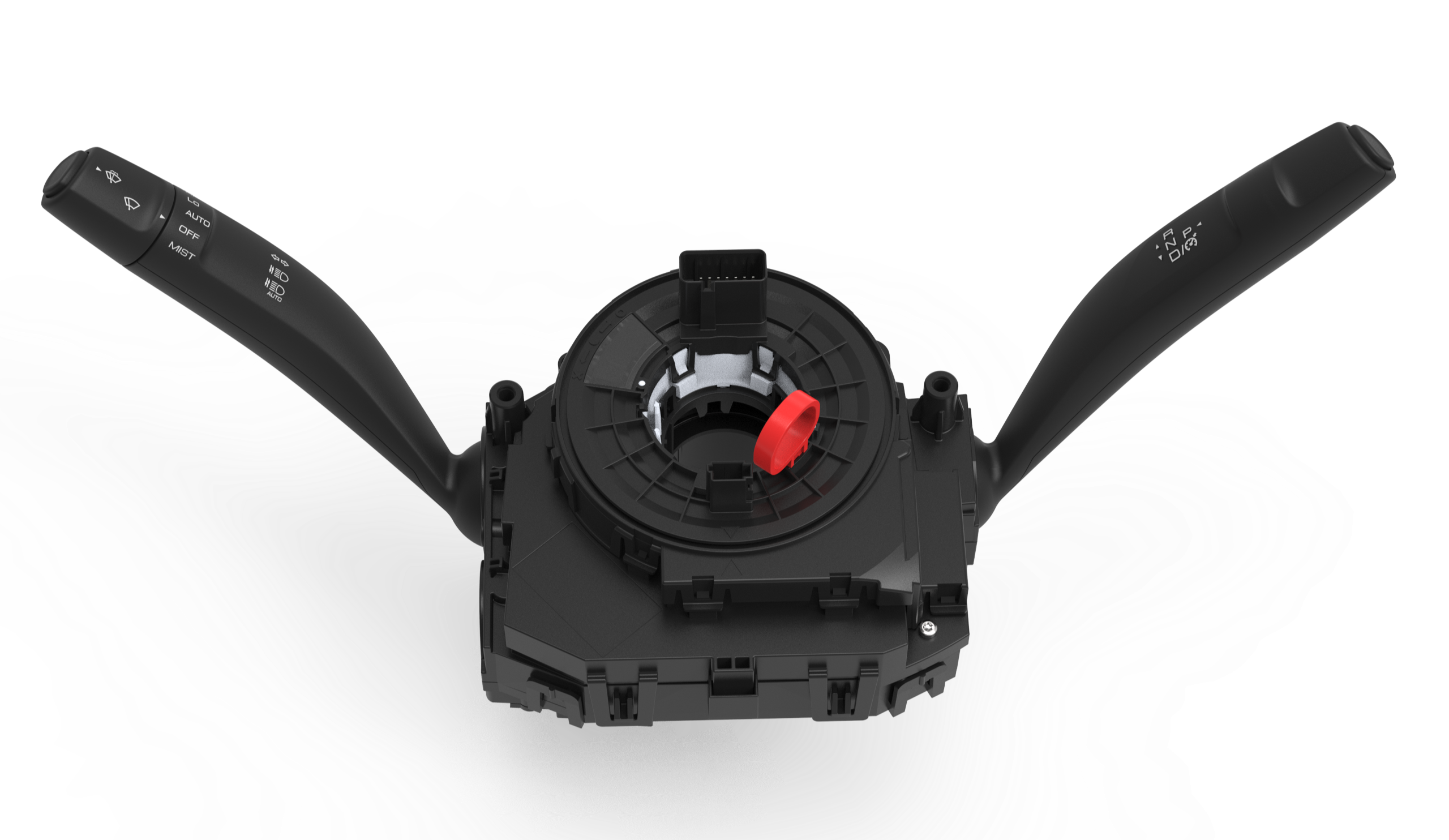

Column Shift TypeIt is composited by 3 pars including combination switch, clock spring and angle sensor, in which combination switch has three handles, respectively lighting and windscreen wiper handle, navigation handle and shifting handle, mainly realizing functions such as steering light control, front and rear window wiper and spray control, navigation open and close and speed-adjusting and distance-adjusting control, PRND (M) gear control and gear backlight and integrated steering wheel heating.
- The product is provided with the functions such as network diagnosis, online bootloader, and reserving CANFD; clock spring physically integrates combination switch, jointly uses one port with PCBA, and realizes three in one. At the same time, it is able to process and convert Lin, the part transmitted by SRC and hardwire signal into CAN signal unified output, it adopts double chip/dual core MCU technology to achieve ASIL-D, operation is simple, and occupied space is small.
- Slightly modified design can be mounted on different pure electric and MPV vehicle models.
Electric Open and Close Parts
Electric open and close parts broadly refer to car body parts that can open and close, and they involve processes such as parts punching, wrapping and welding, parts fitting and assembly, which are relatively sophisticated parts in car body process.
-
Electric Side Pedal -
Electric Spoiler
Customization requirements
- Electric Side Pedal
- Electric Spoiler
-
Electric Side PedalController or control motor integrating existing door control module to drive side pedal unit to complete stepping for the convenience of driver and passengers to get on and off the vehicle; the pedal retrieves after door closing and is concealed at the bottom of the vehicle.
- Pure imported motor with original packaging, with torque 80N•m, can freely handle various working conditions under -40℃～85℃ environment
- 80N•m-4085 intelligent anti-trapping and intelligent full-vehicle mode self-adjustment
- Parallel difference against skirt of the entire vehicle is controlled within 2mm, and assembly noise is ≤60 decibel
- Satisfy load bearing of 150,000 times (approximately 15 years of service life) of load slurry endurance cycle
- Free from modeling deformation under 2,700N load bearing
-
Electric SpoilerAngle and height of spoiler is adjusted according to speed signal of the entire vehicle to optimize wind resistance coefficient of the vehicle, increase lower pressure of tail and improve driving stability under the state of high speed of the vehicle.
- Optimize wind resistance coefficient of the vehicle, reduces fuel consumption and improves endurance
- Increases lower pressure of tail and improves driving stability under the state of high speed of the vehicle
- Troubleshooting and automatic alarm
- Automatic calibration of spoiler position
Explore Future Travelling by New Energy and Intelligentization As the Direction
Involving the scenery of travelling in the future, carry out innovative technological research and development and product exploration from the angle of intelligent driving, user experience and health and safety, dedicated to becoming the globally advanced parts company.
Application to Vehicle Models
-
GWM POER -
WEY -

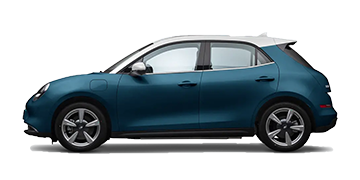

ORA -

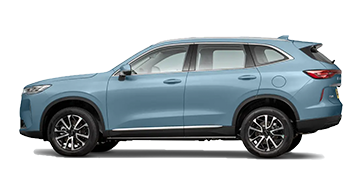

HAVAL -
TANK -

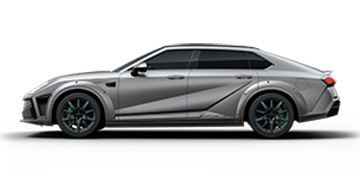

SAR -
International / Joint Venture Customers
Provide Higher Quality Products and Services for You
